Модель JKL14

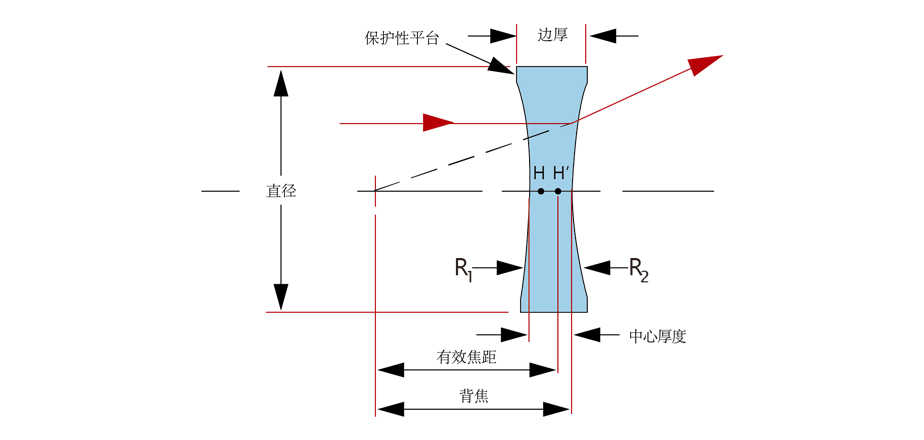

| Диаметр | Фокус | Задний фокус | R1 | Толщина в центре | Толщина по краям | Модель без покрытия | AR 400-700 нм | AR 650-1050 нм | AR 1000-1650 нм |
| 2 | -2 | -2.31 | -2.22 | 1 | 1.48 | JKL14-002-002 | JKL14-002-002-VIS | JKL14-002-002-NIR | JKL14-002-002-SWIR |
| 2 | -2.5 | -2.81 | -2.74 | 1 | 1.38 | JKL14-002-003 | JKL14-002-003-VIS | JKL14-002-003-NIR | JKL14-002-003-SWIR |
| 3 | -3 | -3.31 | -3.26 | 1 | 1.73 | JKL14-003-003 | JKL14-003-003-VIS | JKL14-003-003-NIR | JKL14-003-003-SWIR |
| 3 | -6.3 | -6.62 | -6.67 | 1 | 1.34 | JKL14-003-006 | JKL14-003-006-VIS | JKL14-003-006-NIR | JKL14-003-006-SWIR |
| 3 | -10 | -10.32 | -10.5 | 1 | 1.22 | JKL14-003-010 | JKL14-003-010-VIS | JKL14-003-010-NIR | JKL14-003-010-SWIR |
| 4 | -4 | -4.32 | -4.3 | 1 | 1.99 | JKL14-004-004 | JKL14-004-004-VIS | JKL14-004-004-NIR | JKL14-004-004-SWIR |
| 6 | -6.3 | -6.77 | -6.75 | 1.5 | 2.91 | JKL14-006A-006 | JKL14-006A-006-VIS | JKL14-006A-006-NIR | JKL14-006A-006-SWIR |
| 6.3 | -6.3 | -6.78 | -6.75 | 1.5 | 3.06 | JKL14-006-006 | JKL14-006-006-VIS | JKL14-006-006-NIR | JKL14-006-006-SWIR |
| 10 | -10 | -10.48 | -10.58 | 1.5 | 4.01 | JKL14-010-010 | JKL14-010-010-VIS | JKL14-010-010-NIR | JKL14-010-010-SWIR |
| 12.5 | -12.5 | -12.48 | -12.64 | 1.5 | 4.81 | JKL14-012-012 | JKL14-012-012-VIS | JKL14-012-012-NIR | JKL14-012-012-SWIR |
| 16 | -16 | -16.49 | -16.78 | 1.5 | 5.56 | JKL14-016-016 | JKL14-016-016-VIS | JKL14-016-016-NIR | JKL14-016-016-SWIR |
| 25 | -25 | -25.66 | -26.16 | 2 | 8.36 | JKL14-025-025 | JKL14-025-025-VIS | JKL14-025-025-NIR | JKL14-025-025-SWIR |
| 30 | -30 | -30.79 | -31.4 | 2.5 | 10.13 | JKL14-030-030 | JKL14-030-030-VIS | JKL14-030-030-NIR | JKL14-030-030-SWIR |
| 40 | -40 | -40.82 | -41.74 | 2.5 | 12.71 | JKL14-040-040 | JKL14-040-040-VIS | JKL14-040-040-NIR | JKL14-040-040-SWIR |
| 50 | -50 | -50.99 | -52.15 | 3 | 15.77 | JKL14-050-050 | JKL14-050-050-VIS | JKL14-050-050-NIR | JKL14-050-050-SWIR |
